ArcShot
Capture. Annotate. Share.
ArcShot is a fast and lightweight Windows screenshot annotation tool for developers, artists, and technical creators. Capture any area, annotate with precision, and share exactly what you mean.
Built for clarity. Designed for speed.Overview
Stack
C# / WPF
.NET 10
Format
Editable
.arc projects
License
MIT
Open Source
Workflow
Capture
Capture any area of your screen. Window, monitor, or custom region.
- →

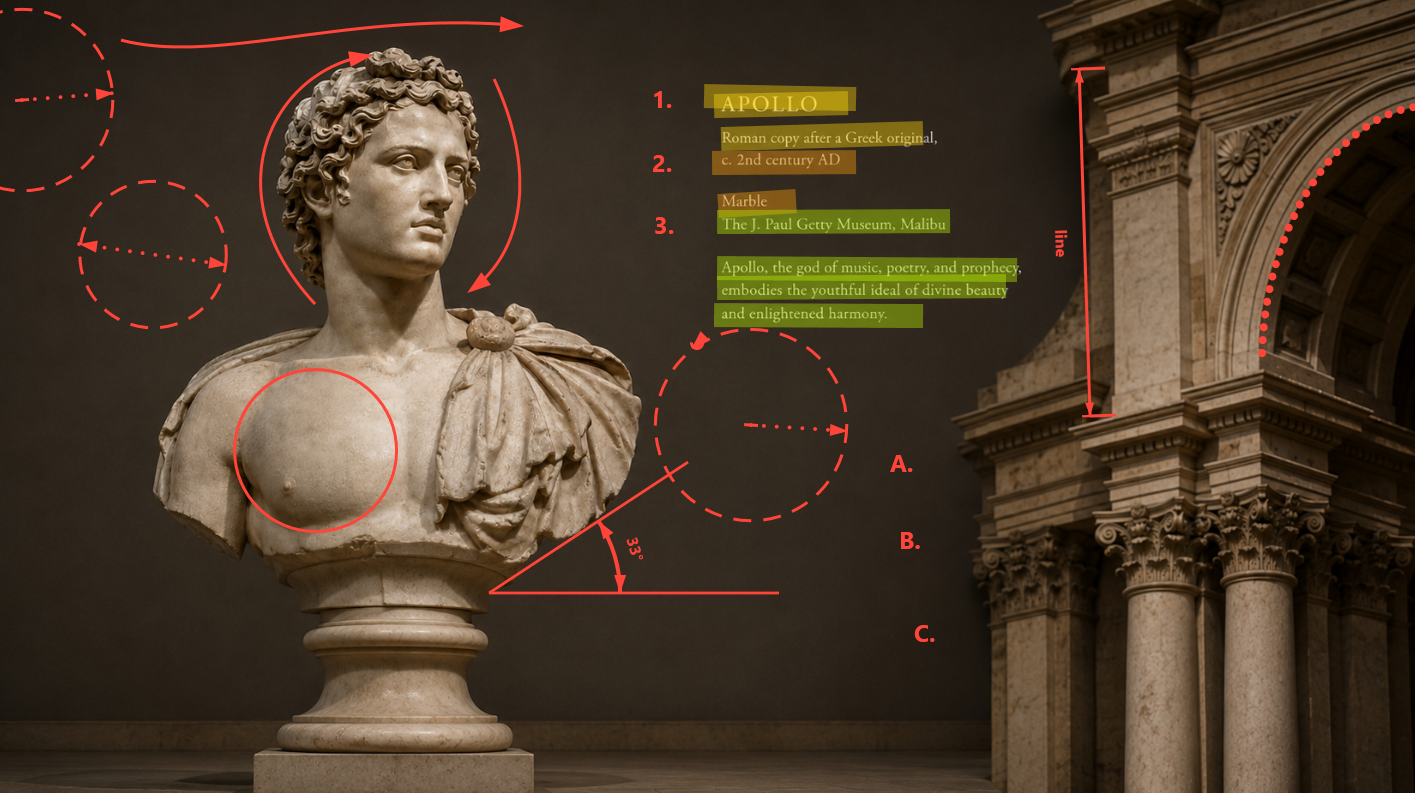

Annotate
Add arrows, shapes, text, CAD dimensions, and more with precision.
- →
Style
Quickly style annotations with shortcuts and custom presets.
- →
Copy / Save / Pin / PureRef
Copy to clipboard, save as image, pin on top, or send directly to PureRef.
User Guide
1. Capture
Use the tray menu or shortcuts to start a capture. Choose full screen, UI element, or custom area capture.
- Capture Full grabs the current display.
- Capture Element highlights the item under the cursor.
- Capture Area lets you drag a custom region.

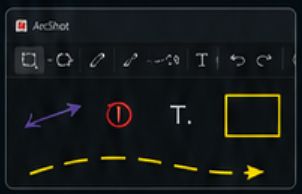

2. Annotate
Select a tool from the floating toolbar, then draw directly on the screenshot. Click an annotation again to edit it.
- Line, curve, freehand pen, marker, rectangle, ellipse, text, sequence markers, and magnifier are supported.
- Press Delete to remove the selected annotation.
- Use Ctrl+Z / Ctrl+Y for undo and redo.

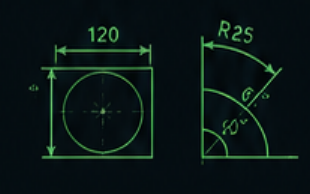

3. CAD dimensions
Add CAD-style aligned, angular, radius, and diameter annotations. Labels can be edited manually after drawing.
- Hold Shift while drawing to snap angles.
- Angular dimensions calculate the angle automatically.
- Dimension color, width, and line style follow the same annotation controls.
4. Adjust style
Use the toolbar color picker and wheel shortcuts to adjust styles without interrupting your drawing flow.
- Mouse wheel zooms the screenshot.
- Ctrl + wheel switches line style.
- Shift + wheel changes line width.
- Alt + wheel changes arrow style or marker opacity.
5. Copy, save, pin
Right-click the screenshot editor for quick output actions.
- Copy sends the final image to the clipboard.
- Save As exports an image file.
- Pin keeps the capture above other windows.

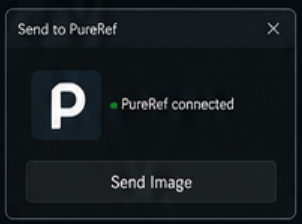

- Send to PureRef adds the capture to your PureRef board.
6. Reopen later
Save an ArcShot project when you need to continue editing the same screenshot later.
- Save Project creates an editable .arc file.
- Open ArcShot Project restores the screenshot and every annotation.
- Double-clicking an .arc file opens it in ArcShot.
